Mounting the ProTac HL 5-X on a rifle: the short answer
You can clamp the ProTac HL 5-X on a rifle, but very few common light mounts will fit it. The barrel measures 1.25 inches. Most scout-style mounts use one-inch rings, so they are simply too small. Streamlight also builds no remote switch for this model. That is the part which matters most once a light is on a gun.
What decides whether this light works on a rifle
- Yes, but The 5-X will clamp to a rail. Very little standard mounting hardware actually fits it.
- 1.25-inch barrel Most scout-style light mounts close on a one-inch tube, so they will not go around this body.
- No remote switch Streamlight builds no tape switch for the 5-X, so activation stays on the light itself.
- Weight and length 1 lb 2.4 oz loaded with four CR123A cells, across 9.53 inches.
- It does throw 385 m of beam at 37,000 candela, which beats most dedicated long-gun lights.
- The alternative The ProTac Rail Mount HL-X is the same family built for a rail, with a remote pad included.
Output and dimension figures are Streamlight’s published specification for part 88074, the four-cell CR123A version.

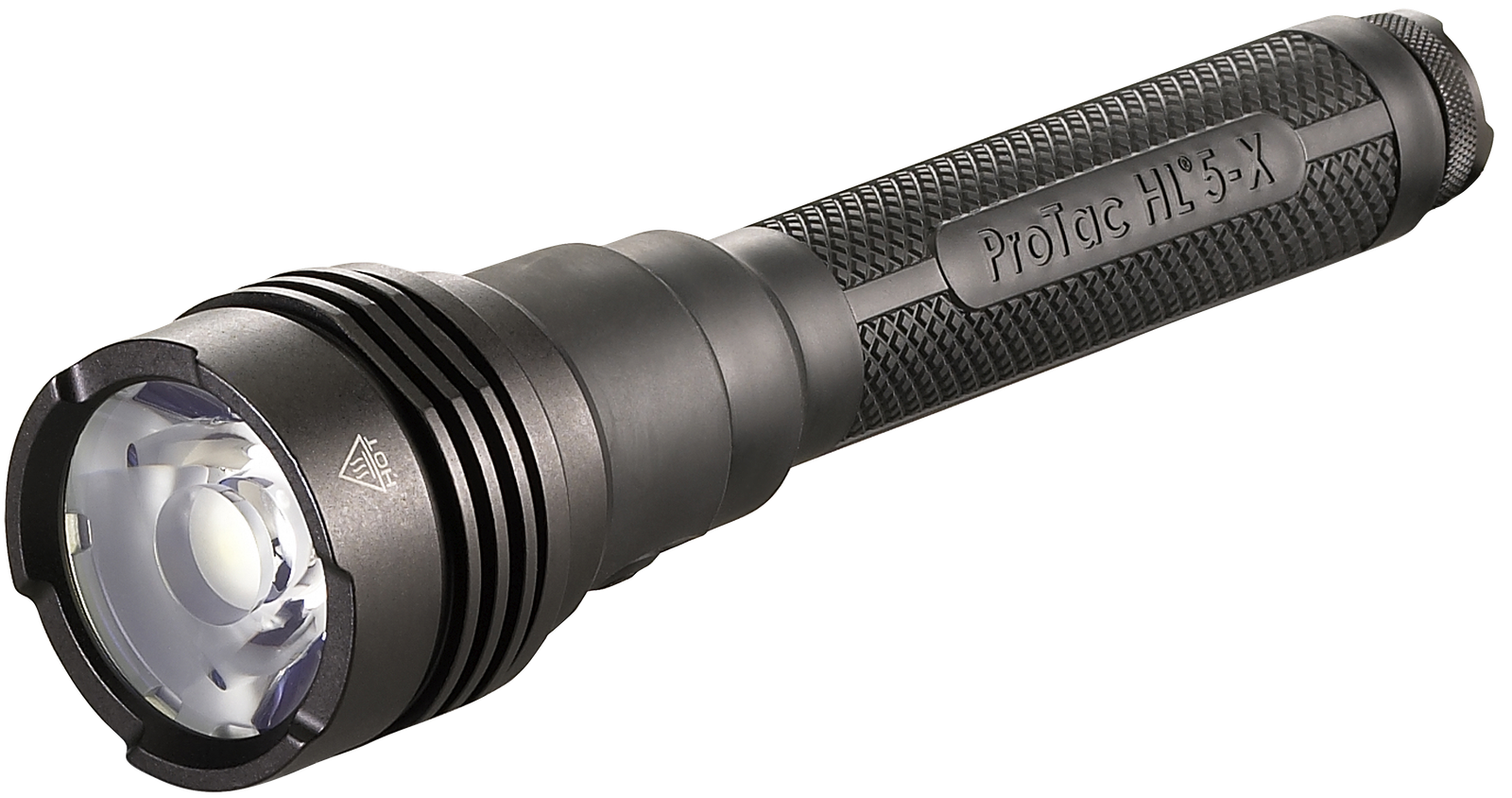

Streamlight ProTac HL 5-X
Ultra-bright 2500-lumen LED Output
A genuinely excellent handheld searchlight: 2,500 lumens and 385 m of reach from four CR123A cells. Every reason it is good in the hand is a reason it is awkward on a rifle, because the size and the body switch come as a pair.
ProTac HL 5-X, part 88074 (four CR123A cells)
What a rifle light needs that the 5-X does not have
A weapon light lives or dies on switch placement and weight. The 5-X stacks four CR123A cells over 9.53 inches, and lands at 1 lb 2.4 oz loaded. That is roughly double a purpose-built long-gun light.
Its switch also sits on the light body, not on a tape pad at your thumb. Reaching it breaks your support-hand grip on the handguard, which is exactly why dedicated long-gun lights route activation to a remote pad instead. Beam quality is a separate question from raw output, and our explainer on lumens versus candela in a weapon light covers why 2,500 lumens is not the whole story.
Handheld on a clamp vs a light built for the rail
| What you already own ProTac HL 5-X | VS | Built for a rifle Rail Mount HL-X |
|---|---|---|
No | Integrated rail mount |
Yes |
No | Remote tape switch |
Yes |
2,500 lumens | Maximum output |
1,000 lumens |
1.25 in | Barrel diameter |
Mount is integral |
Handheld use | Designed for |
Long guns |
| Check price | Check price |
If you are putting the ProTac HL 5-X on a rifle anyway
Plenty of people already own a 5-X and would rather use it than buy twice. That is fair for a truck gun or a range setup. Just size the ring to the real barrel diameter, and re-check the clamp after every session. Streamlight’s published spec sheet is the place to confirm every figure here before you order hardware.
Five steps to clamp a handheld light to a rail
- Measure the barrel yourself
Streamlight does not print a barrel diameter on its spec sheet. Retail listings give 1.25 inches, so buy for that and confirm with calipers before the ring goes anywhere near the rifle.
- Buy a ring, not a scout mount
One-inch scout mounts will not close on this body. A 1.25-inch or adjustable-diameter clamp on a Picatinny or M-LOK base is the route that actually works.
- Mount it low and far forward
Low keeps leverage off the clamp. Forward gets the 2.35-inch head clear of your optic, and stops the bezel shading your own muzzle.
- Rotate the light so the switch stays reachable
The body switch is your only activation. Turn the light in the ring until you can reach it without abandoning your grip completely.
- Re-torque after live fire
Fire a few rounds, then check the clamp again. A 522 g light on a third-party ring shifts under recoil far more readily than an integral mount does.
None of this gives you momentary activation. If you need to pulse the light from your firing grip, no clamp will fix that.
If the light is going to live on the rifle

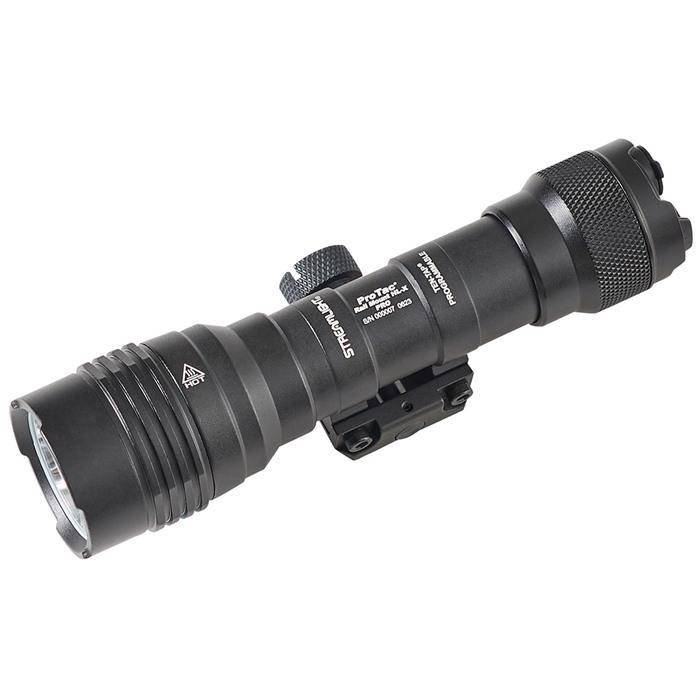

Purpose-built long-gun light with a remote tape switch
You give up 1,500 lumens against the 5-X and you get back everything that matters on a long gun: a mount that is part of the light, and a pressure pad you can reach without moving your support hand.
Mounting the ProTac HL 5-X: common questions
Can the Streamlight ProTac HL 5-X be mounted on a rifle?
Physically yes, using a clamp sized to its 1.25-inch barrel. It was designed as a handheld light, so it carries no rail interface of its own and no remote switch.
Will a standard one-inch light mount fit it?
No. The barrel is 1.25 inches, so the one-inch rings used by most scout-style mounts are too small. You need a 1.25-inch clamp or an adjustable-diameter ring.
Is there a remote pressure switch for the ProTac HL 5-X?
Streamlight does not make one for this model. Remote tape switches belong to the ProTac Rail Mount HL-X family, which are purpose-built long-gun lights rather than handhelds.
How heavy is it once it is on the rifle?
1 lb 2.4 oz with its four CR123A cells, across 9.53 inches of length. That is roughly twice the weight of a dedicated long-gun light.
How bright is it, and for how long?
2,500 lumens on High for 1.5 hours, throwing 385 m at 37,000 candela. Medium gives 1,000 lumens for 2.5 hours, and Low gives 250 lumens for 10.5 hours.
What should I buy instead if I want a weapon light?
The ProTac Rail Mount HL-X. It gives up output at 1,000 lumens, but it clamps to a Picatinny rail directly and accepts a remote tape switch.
Mount it if you must, but know what you are accepting
- 1.25-inch barrel rules out most one-inch light mounts
- No remote switch exists for this model, at any price
- 1 lb 2.4 oz and 9.53 inches is a lot of weight on a handguard
- It does genuinely out-reach purpose-built lights at 385 m
The 5-X will go on a rifle, and it will out-throw most dedicated weapon lights at 385 m. But it asks you to solve a 1.25-inch clamp problem, carry 522 g on the handguard, and give up momentary activation entirely. For a light that lives on a long gun, the Rail Mount HL-X answers all three out of the box.
